My New Bars

**rustyford** · 01-01-2012, 08:44 PM

After all the talk, I decided to pull the trigger and get some new bars. I went with some 12" apes that were actually for HD springers (whatever that means

)

All the cables were good except the front brake line. I ended up ordering a Galfer braided stainless kit from www.motorcycleparts2u.com. Good people and got the goodies in 4 days.

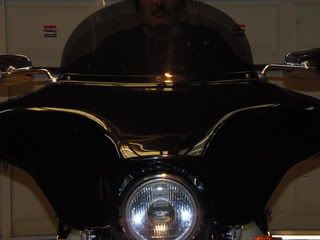

Here's a few pics of the before and after.

Before

During:

After:

mweaver · 01-01-2012, 09:17 PM

What is the difference in the width at the end of grips?

Thinking about doing the same with my 1700 Nomad. I just don't need

the steering to be any harder on my bad neck and shoulders.

Old age is taking it's toll. Those look great. You may be costing

me $$$$$

Mike

wheelie · 01-01-2012, 09:18 PM

Looks good. I've thought about apes but will probably just put some taller risers on someday.

**rustyford** · 01-01-2012, 09:22 PM

mweaver, I'm not sure of the actual measurements but can get them tomorrow. I do know the apes are more narrow. I like the feel of them so far.

wheelie, I did the bars because my stock risers are just under the fairing. I'm a little tall so had to do something.

**ringadingh** · 01-01-2012, 10:05 PM

They do look good on there, nice job.

Monkeyman · 01-02-2012, 02:51 AM

The main difference between the Springer bars (made for the HD Springers) and non-Springer bars is the spacing of the knurling (the bumpy area where they meet the risers). Springer spacing is something like 6 1/2" whereas the non-Springer spacing is more like 3 5/8". Look at yours and you'll see part of the knurling sticking out the sides of your spacers. No big deal imo as long as part of the knurling is under the risers. Those look good. I'm still trying to choose between 12", 13" and 14" apes. I need to sit on a Nomad with each (or at least with one) before I choose but I'm not sure that's possible as I'd like to get them (and install) before spring.

AlabamaNomadRider · 01-02-2012, 04:40 AM

Looks sharp.

Pitchinguy · 01-02-2012, 07:27 AM

Look'n good!! Do you have driver backrest & highway pegs?

Pitchinguy · 01-02-2012, 07:39 AM

Quote:

Originally Posted by mweaver

What is the difference in the width at the end of grips?

Thinking about doing the same with my 1700 Nomad. I just don't need

the steering to be any harder on my bad neck and shoulders.

Old age is taking it's toll. Those look great. You may be costing

me $$$$$

Mike

If anything, the apes will make steering easier, kinda like power steering. Apes that place your hands slightly lower than your shoulders will prolly help your back & shoulders. The 14's w/driver backrest & highway pegs have done wonders for mine. With OEM bars, 2-3 hrs & my back, neck & shoulders were killing me. A full day ride took 2-3 days to recover. After the mods, 12 hrs, no problem!

**rustyford** · 01-02-2012, 10:19 AM

Part of the knurling does stick out, but I had a buddy with a nmachine shop knurl them a little more to better fit the risers. They feel solid.

I do have highway pegs and a driver's back rest. I just took the backrest off for awhile for the solo look, which i love. My wife doesn't ride when it gets cold.

Here's a few pics of me on it. Keep in mind I'm 6'6" so your results may vary

And one more.

**rustyford** · 01-02-2012, 10:22 AM

The bars were $60 and the brake line kit was $100 to my door. Not a bad investment for a big change in comfortable all day riding.

Monkeyman · 01-02-2012, 11:17 AM

Where did you find them for $60? I've seen a few that I might want but either they've been more expensive or all they had were "stock" photos. I'd drop $60 on a set tomorrow especially if they came in 14s. Only difference is I want mine powdercoated black and non-Springer (although I supposed I could find someone who could knurl a bit more for me).

**rustyford** · 01-02-2012, 11:55 AM

I found these in an indy store called Freedom Cycle (http://www.freedomcycles.com/home.html) in OKC, Oklahoma. Great little store packed full of bike goodness.

They seem to favor HD, but have been good to me everytime I've been in tehre. You just need to know your measurements because they don't.

Karol Trup · 01-06-2012, 10:38 PM

That's an excellent job you did there. I have never thought I would ever like anything like that on my nomad but man, you got me a bug in my head! I am 5' 10". Any advice what size would fit me? I was thinking 10 to 12" max... I like that fairing as well. What brand and what the price was? Any idea if the fairing painting can be done DIY or it must be in the shop? Sorry for so many questions at once. I just like it so much I will most likely do that, too... Thanks.

danimal2 · 01-06-2012, 11:05 PM

Quote:

Originally Posted by rustyford

I'm a little tall so had to do something.

Yup. You definitely needed some taller bars. It almost looks like your hands/grips are still behind the fairing even with the taller bars (or close to it)?
